E SHAPE - 2 BEDROOM DESIGNS
Choose from our selection of E- shape designs in the two bedroom range.

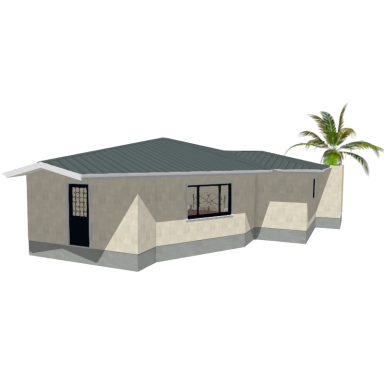

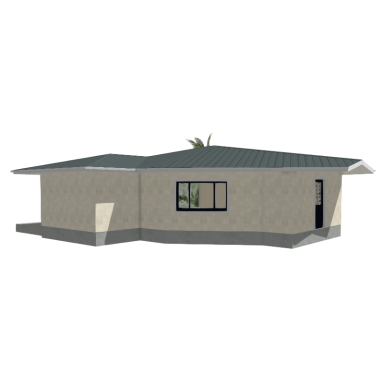

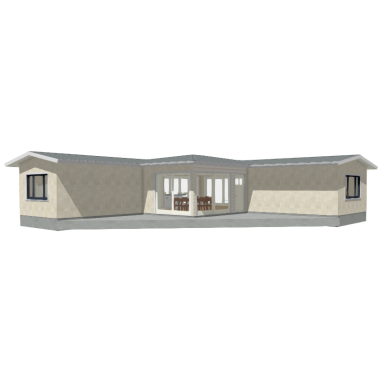

OSPREY FB211

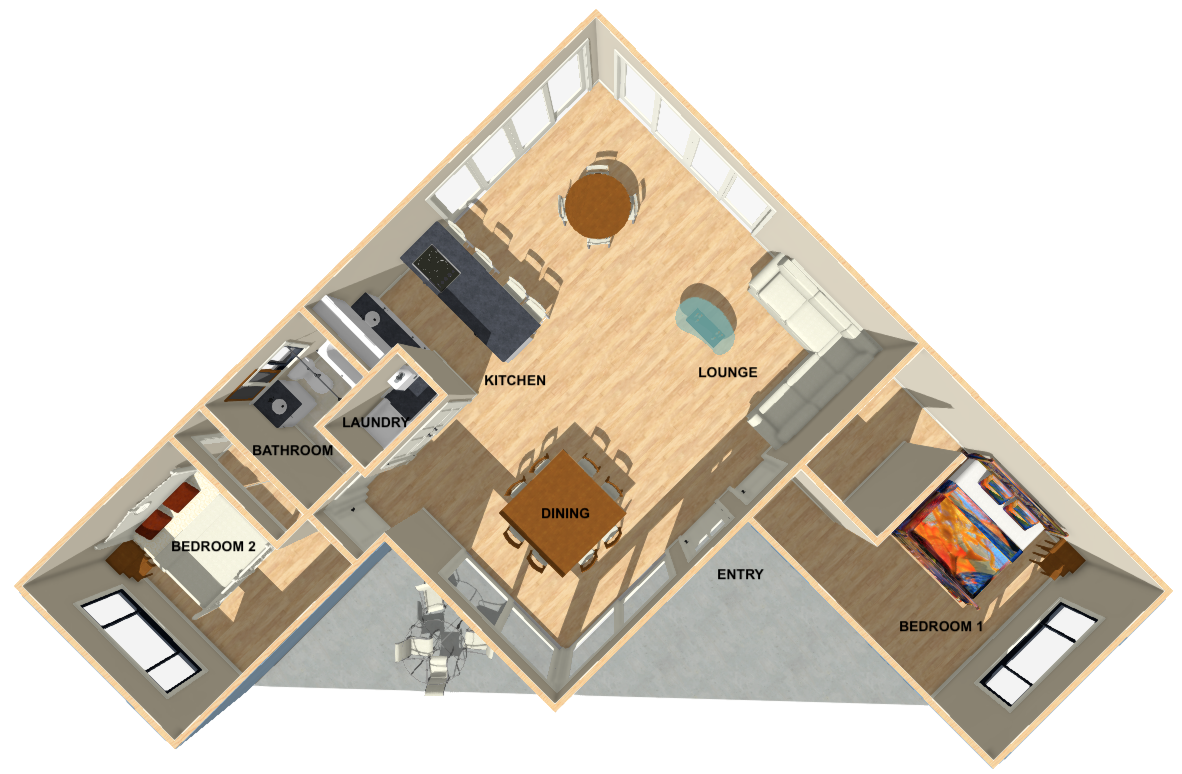

FLOOR PLAN
OSPREY FB211
BEDROOMS - 2
BATHROOMS - 1
LIVING ROOM -1
AREA - 143 sqm (1539 sq.ft )
DECK - 24 sqm (258 Sq.ft)
LENGTH - 13.5 m
WIDTH - 14 m
PDF and DWG - Downloads include,
- Artist impressions
- Floor plans
- Elevations
- Sections
- Roof plan
- Framing plan
- Electrical plan
- Plumbing plan
- Tropical House Plans copyright release
PDF FILE $1,550 USD
DWG FILE $1,850 USD

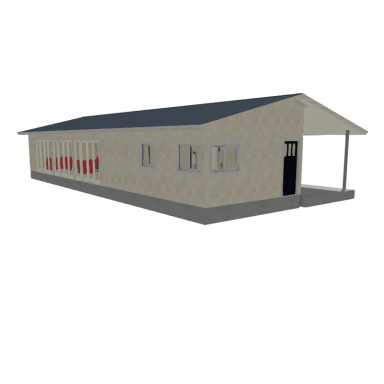

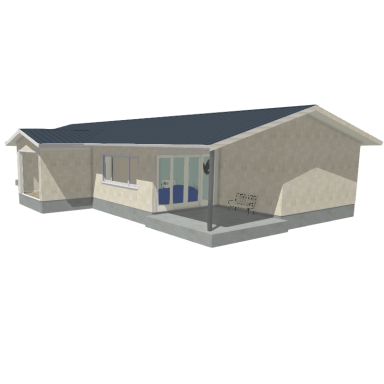

BAT E111

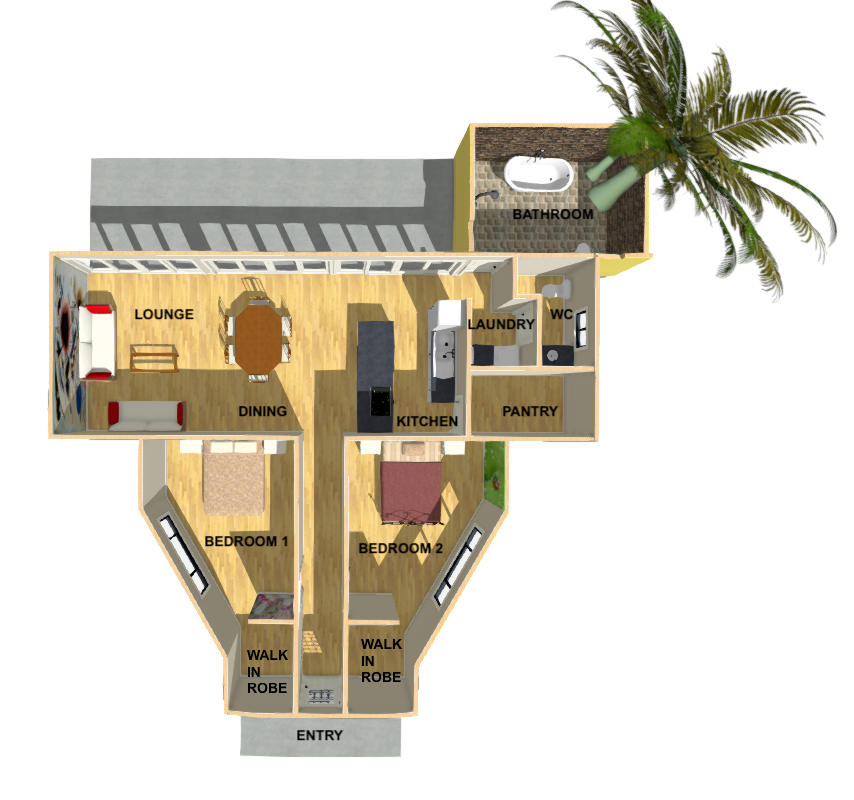

FLOOR PLAN
BAT F211
BEDROOMS - 2
BATHROOMS - 1
LIVING ROOM -1
AREA - 112 sqm (1205 sq.ft )
DECK - 29 sqm (312 Sq.ft)
OUTSIDE BATHROOM - 12 m (129 sq.ft)
LENGTH - 13.5 m
WIDTH - 12 m
PDF and DWG - Downloads include,
- Artist impressions
- Floor plans
- Elevations
- Sections
- Roof plan
- Framing plan
- Electrical plan
- Plumbing plan
- Tropical House Plans copyright release
PDF FILE $1,265 USD
DWG FILE $1,565 USD

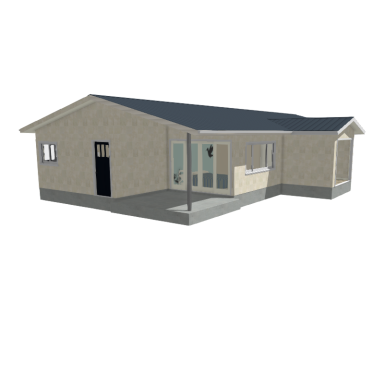

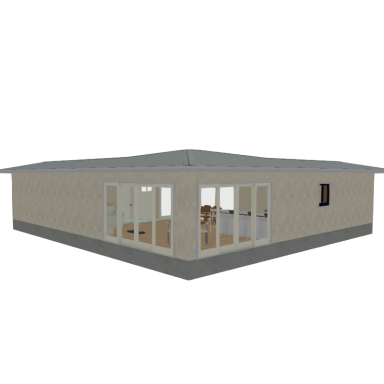

BUTTERFLY E211

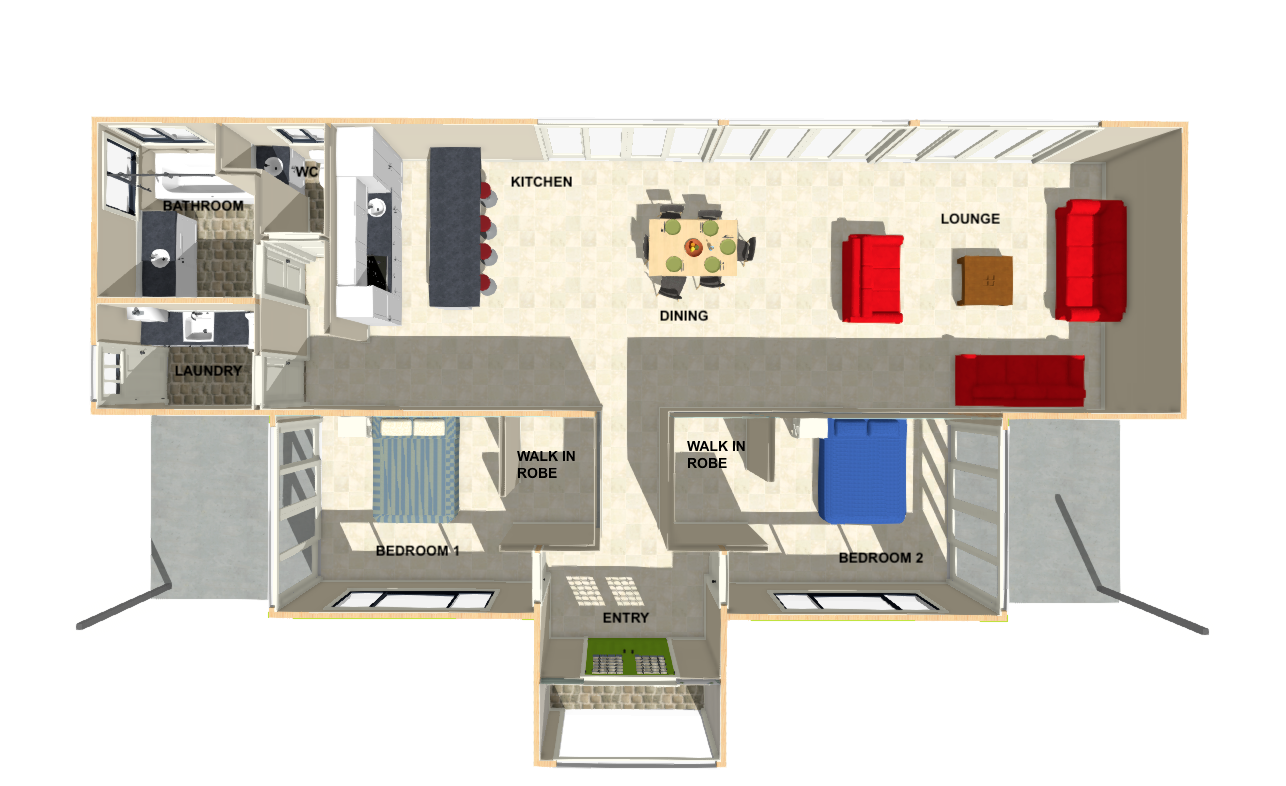

FLOOR PLAN
BUTTERFLY E211
BEDROOMS - 2
BATHROOMS - 1
LIVING ROOM -1
AREA - 102 sqm (1097 sq.ft )
DECK - 28 sqm (301 Sq.ft)
LENGTH - 13 m
WIDTH - 13 m
PDF and DWG - Downloads include,
- Artist impressions
- Floor plans
- Elevations
- Sections
- Roof plan
- Framing plan
- Electrical plan
- Plumbing plan
- Tropical House Plans copyright release
PDF FILE $1,160 USD
DWG FILE $1,460 USD
