D SHAPE - 1 BEDROOM DESIGNS

Choose from our selection of D- shape designs in the one bedroom range.

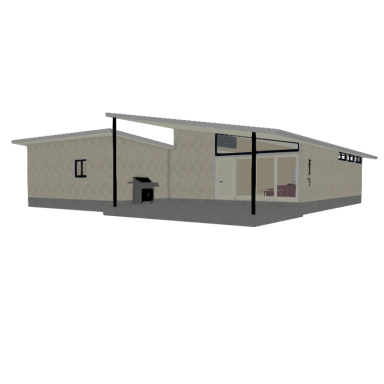

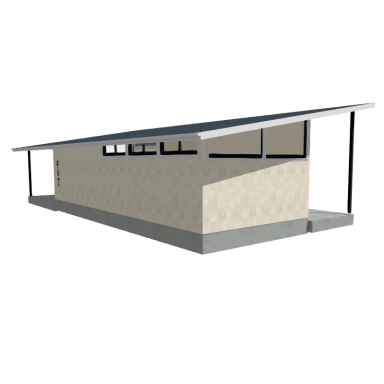

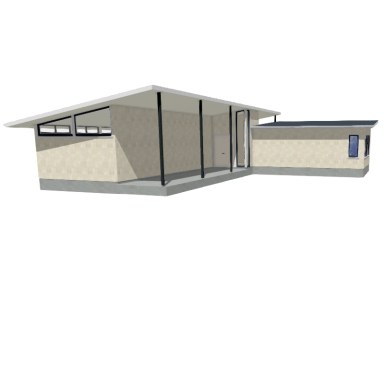

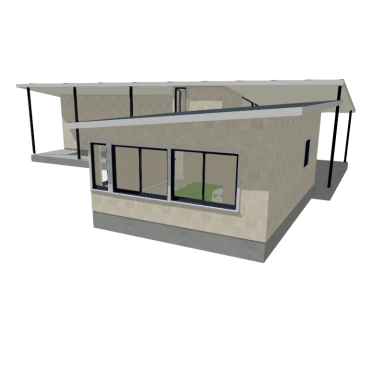

FALCON D111

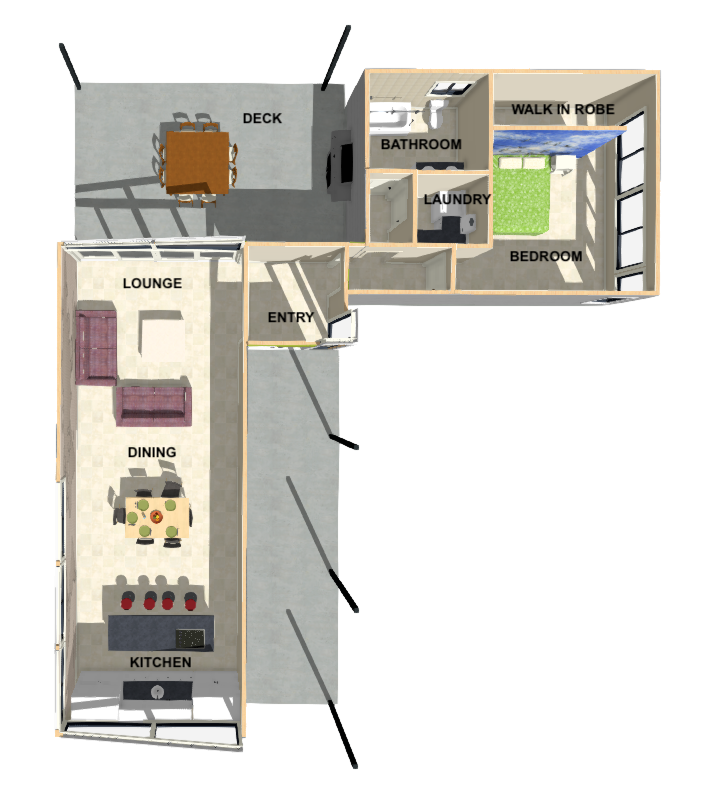

FLOOR PLAN



FALCON D111



BEDROOMS - 1

BATHROOMS - 1

LIVING ROOM -1



AREA - 99 sqm (1066 sq.ft )

DECK - 61 sqm (657 Sq.ft)



LENGTH - 16 m

WIDTH - 14.5 m











PDF  and DWG -  Downloads include,

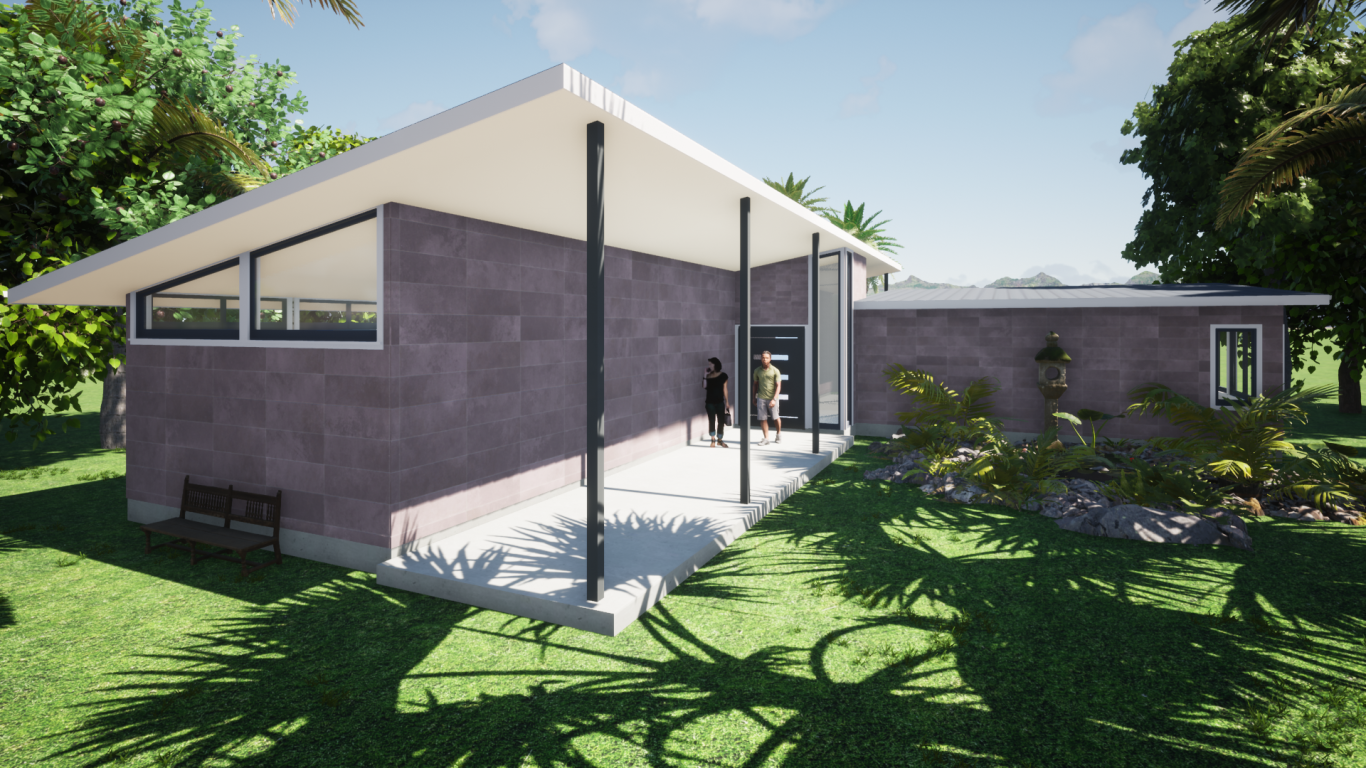

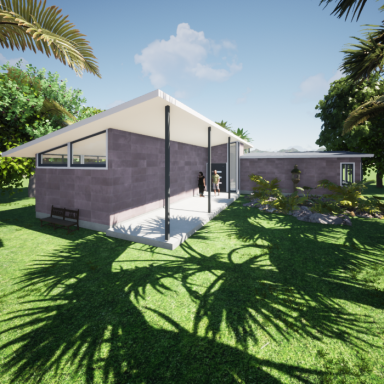

  • Artist impressions
  • Floor plans
  • Elevations
  • Sections
  • Roof plan
  • Framing plan
  • Electrical plan
  • Plumbing plan
  • Tropical House Plans copyright release

PDF FILE $1,170 USD



DWG FILE $1,470 USD
