E SHAPE - 1 BEDROOM DESIGNS

Choose from our selection of E- shape designs in the one bedroom range.

BAT F111

FLOOR PLAN



BAT E111



BEDROOMS - 1

BATHROOMS - 1

LIVING ROOM -1



AREA - 99 sqm (1065 sq.ft )

DECK - 26 sqm (279 Sq.ft)

OUTSIDE BATHROOM - 9 m (96 sq.ft)



LENGTH - 13.5 m

WIDTH - 11.5 m











PDF  and DWG -  Downloads include,

  • Artist impressions
  • Floor plans
  • Elevations
  • Sections
  • Roof plan
  • Framing plan
  • Electrical plan
  • Plumbing plan
  • Tropical House Plans copyright release

PDF FILE $1,170 USD



DWG FILE $1,470 USD

PUP E111

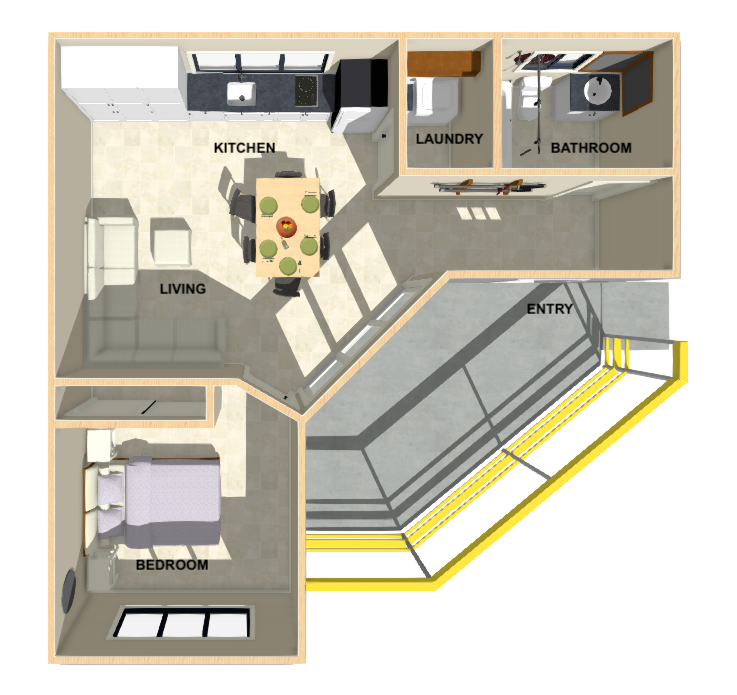

FLOOR PLAN



PUP E111



BEDROOMS - 1

BATHROOMS - 1

LIVING ROOM -1



AREA - 54 sqm (581 sq.ft )

DECK - 16 sqm (172 Sq.ft)



LENGTH - 9 m

WIDTH - 9 m











PDF  and DWG -  Downloads include,

  • Artist impressions
  • Floor plans
  • Elevations
  • Sections
  • Roof plan
  • Framing plan
  • Electrical plan
  • Plumbing plan
  • Tropical House Plans copyright release

PDF FILE $620 USD



DWG FILE $920 USD
